24 - 144F Rack Mount Rotating Type Fiber Distribution Panel

Name: 24 144F Rack Mount Rotating Type Fiber Distribution Panel
Brand: DAWNERGY
Price: 55 USD

Wholesale 24 - 144F Rack Mount Rotating Type Fiber Distribution Panel from china suppliers

Brand Name : DAWNERGY

Model Number : ODU-144

Certification : CE

Place of Origin : CHINA

MOQ : 100

Price : 55USD

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 1000 PER DAY

Packaging Details : Wooden Box

Brand : Dawnergy

Product : Optical Distribution Unit

Application : Indoor

Installation : 19 Inch

Adapter Type : LC/APC Duplex

Splice Tray : 1~7

Installation Method : 19” rack mounted

Size (mm) : 482 (W) x 270 (D) x 44 (H) 24F 482 (W) x 270 (D) x 132 (H) 144F

Contact Now

24~144F Rack Mount Rotating Type Fiber Optic Patch Panel

Features

19-inch standard structure
Rotating type, rack mounted
LC Duplex adapter panel
Single layer swing type convertible to either open to the left or to the right.

24 - 144F Rack Mount Rotating Type Fiber Distribution Panel

Applications

FTTH access networks
Telecommunication networks
Local Area Networks

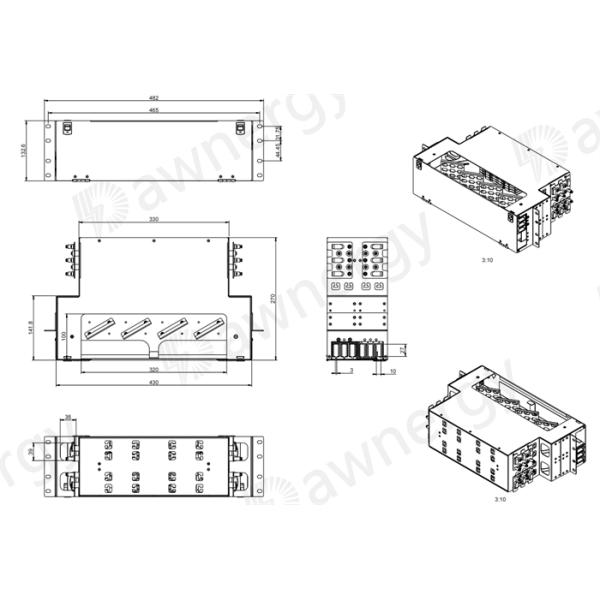

Dawning (Unit: mm)

24 - 144F Rack Mount Rotating Type Fiber Distribution Panel

24F Fiber Optic Patch Panel

24 - 144F Rack Mount Rotating Type Fiber Distribution Panel

144F Fiber Optic Patch Panel

Specifications

Parameters	Specification
Max. No. of Cores	24~144
Adapter Type	LC/APC Duplex
Box Material	Cold-rolled steel
Color	Black or Gray
Splicing Tray	1~7 pcs of 24cores tray
Installation Method	19” rack mounted
Open Method	Rotating type, to either open to the left or to the right
Size (mm)	482 (W) x 270 (D) x 44 (H) 24F 482 (W) x 270 (D) x 132 (H) 144F

Standard Package

No.	Name	Unit	Quantity
1	Rack Mount Bracket	pieces	2
2	Protect Splice Sleeves	pieces	24~144
3	Protection Tube	piece	1
4	Plastic Cable Tie	pieces	10
5	Installation Screw	set	1
6	Splice Tray	pieces	1~7
7	LC/APC Duplex Adapters (Option)	pieces	24~144

Ordering Information

Name	Description
Fiber Optic patch panel	19-inch rack, Rotating type; Max 144 cores, Duplex LC adapter panel
