Name: GPON ONT Single Family Unit SFU
Brand: Dawnergy
Price: 1 USD

Brand Name : Dawnergy

Place of Origin : China

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Delivery Time : 5-8 work days

Packaging Details : Carton

Terminal Type : GPON ONT

Power Supply : 12VDC 0.5A

Dimension(mm) : 90*70*27(W*D*H)

Contact Now

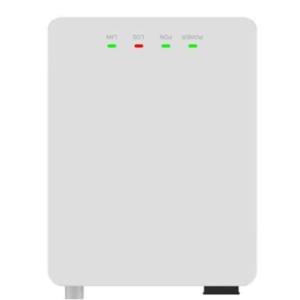

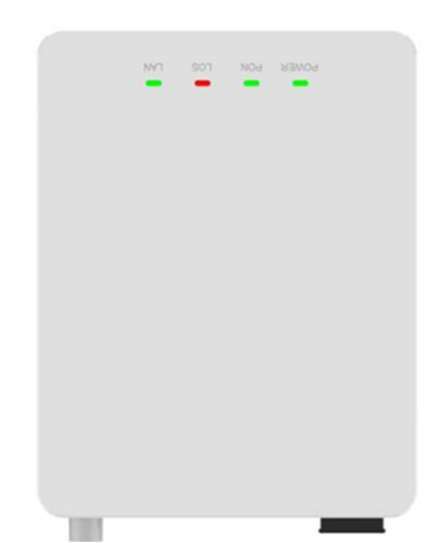

GPON ONT Single Family Unit (SFU)

Feature

•
1*GPON Port, SC/APC

• 1*10/100/1000Mbps RJ45 Port

• L2 Bridge

Specification

Basics
Terminal Type	GPON ONT
Memory	8MB SPI Nor Flash 32MB CPU built-in
Power Supply	12VDC 0.5A
Power Consumption	≤ 5W
Dimension(mm)	907027(WDH)
Net Weight	74g (device only)
GPON
Standards	ITU-T G.984 series
Optical Module	Class B+, BOSA
Bandwidth	2.488Gbps, Downstream 1.244Gbps, Upstream
Wavelength	1310nm, Transmit 1490nm, Receive
Max Distance	20 Km
TX-Output	0.5~5dBm
RX Input	-28dBm
Interfaces
Optical interface	1*GPON port, SC/APC
Ethernet	1*GbE RJ45 port
Power Input	DC 12V/0.5A
Buttons	Reset, Power On/Off
LEDs	Power, PON, LOS, LAN
Software
Basic Network	802.1D Bridge
Advanced	Service Flow Classification based on VLAN, IGMP Snooping
VLAN	802.1Q VLAN, QinQ
Management	HTTP/Web Standard OMCI (G.984.4)
Environment
Operating Temp.	0 ~ 45℃ (32~113℉)
Storage Temp.	-20 ~ 65℃ (-4 ~149℉)
Operating Humidity	0% ~ 90% non-condensing
